Overview¶

EDGEMATRIX Stream Toolkit is a software toolkit released by EDGEMATRIX, Inc (EMI), and which is defined as folows:

An EDGEMATRIX Stream Toolkit is a tool installed on an Toolkit Box that allows an AI model developer
    to make an EDGEMATRIX Stream Application Package (EAP)
    to run it locally for testing purposes
    to submit a tested EAP to sell on the EMI's market place

This would make you wonder about many questions. What is an Toolkit Box? EAP? The EMI’s market place?

They will be covered later in details, but more importantly, please note that this tool is designed for an AI model developer.

Until when deploying a trained model binary on an edge, it has to be built as an application and integrated with a service for the monitoring. Especially, EMI focuses on an IVA (Intelligent Video Analytics) task that inevitably requires video streaming technologies. For example, GStreamer is the most proven library of such a streaming technology, but which is a completely different beast from an AI model development.

Yet, the most competitive intellectual property likely remains around such a trained model binary.

So, EMI provides an Edge AI Service so that an AI model developer could focus on an AI model development. Such an invaluable asset is wrapped by an EAP that can be integrated dynamically with the service for an end user. And EMI will take care of various interactions between end users.

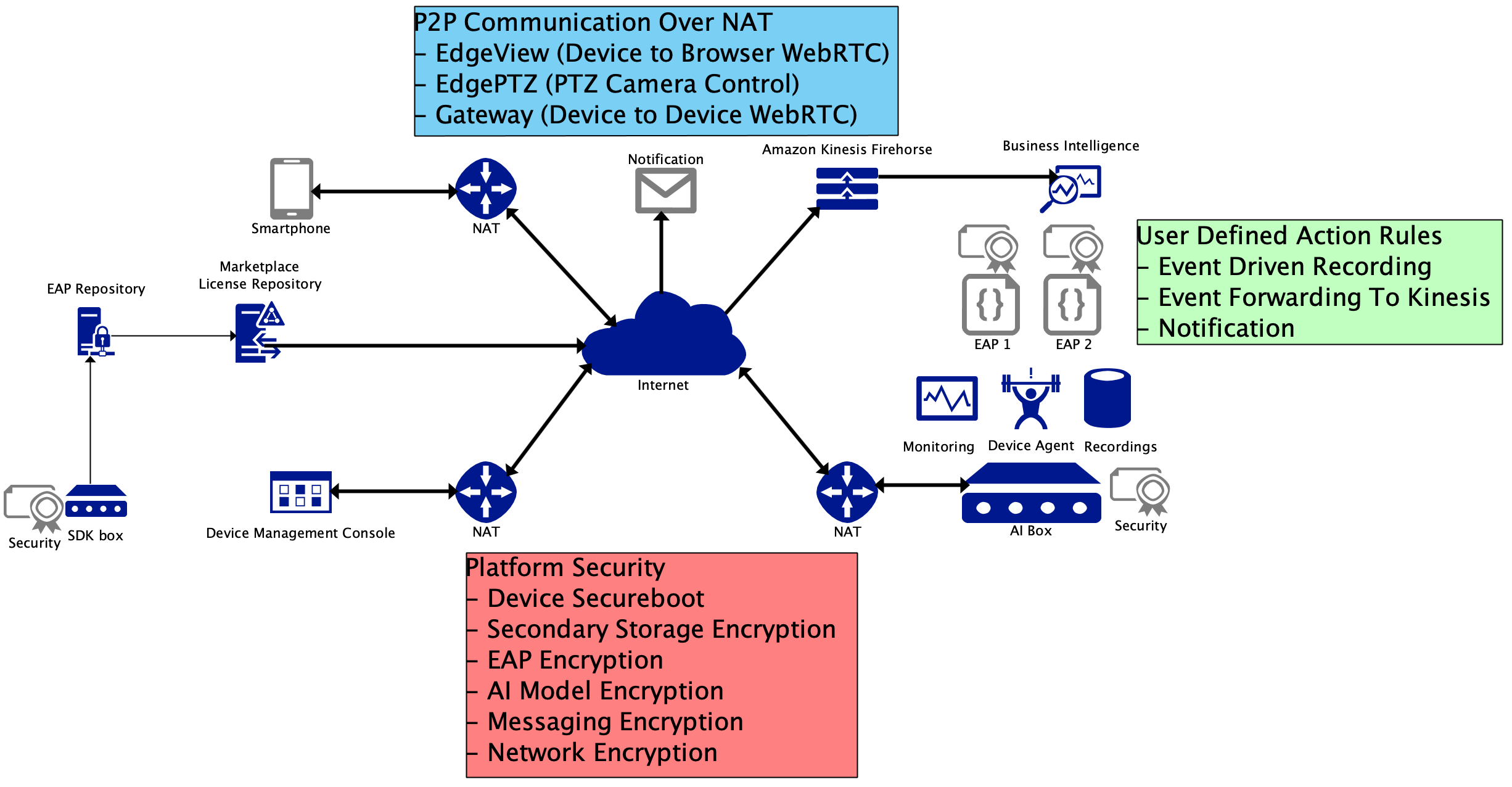

The overal look of the EMI’s Edge AI service is as shown above.

Any EAP developed with the EDGEMATRIX Stream Toolkit can benefit from the service. There are three core benefits.

Device Remote Management (OTA, EAP License, EAP Installation/Uninstallation, Device Status, Terminal Emulation)
Security (Network Security, Device Authentication, Secondary Drive Encryption, EAP Encryption, AI Model Binary Encryption)
EdgeView (WebRTC Realtime Stream even from a device behind a NAT [no public address])

Toolkit Box¶

EMI provides an end-to-end service including an edge device called AI Box.

A Toolkit Box is a type of AI Box built for an AI Model Developer, which comes with the EDGEMATRIX Stream Toolkit.

If you are interested, please contact our sales.

EDGEMATRIX Stream¶

The EDGEMATRIX Stream is the EMI’s core streaming engine that:

works on the NVIDIA’s DeepStream GStreamer plugins
is integrated with the EMI’s Edge AI Service

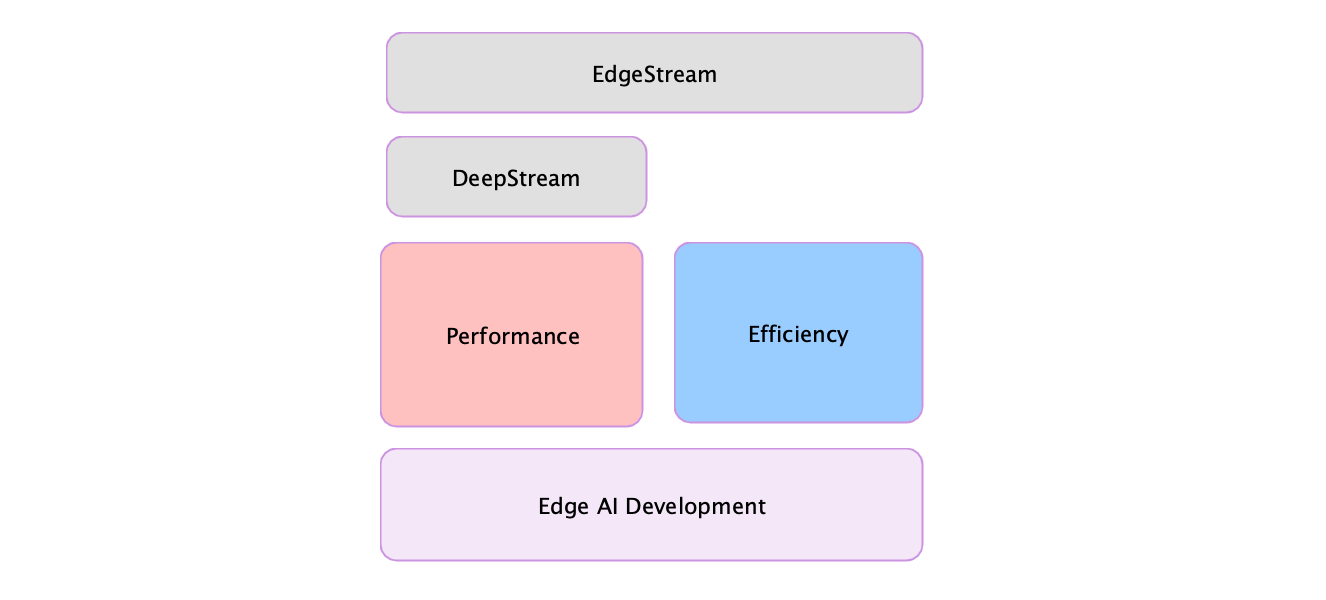

Here’s the picture of the EDGEMATRIX Stream’s concept.

As you can see, the EDGEMATRIX Stream relies on the NVIDIA’s DeepStream about performance. Then, on top of it, the EDGEMATRIX Stream provides both of performance and efficiency over an Edge AI development.

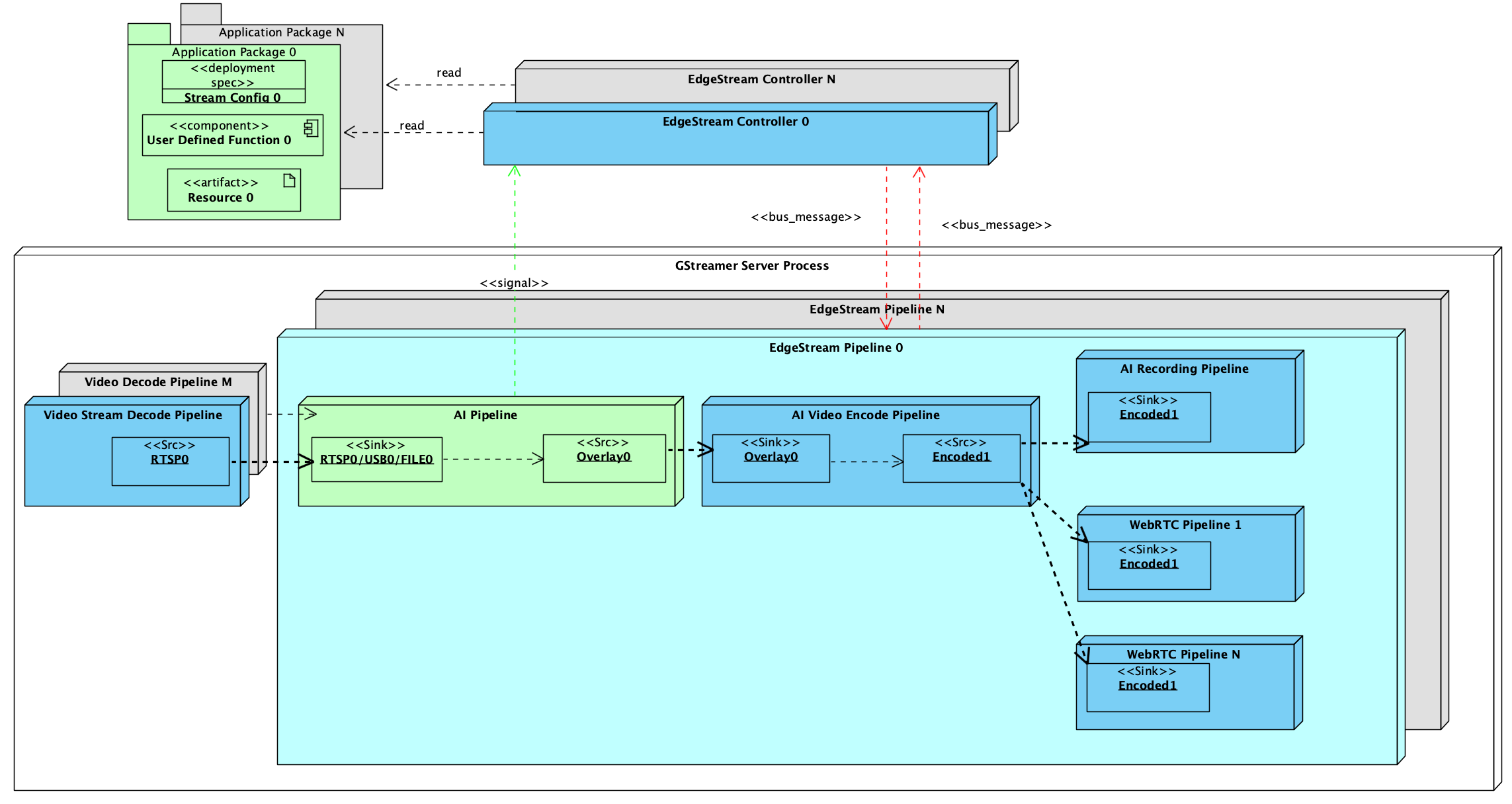

Next, here’s the technical overview of the EDGEMATRIX Stream.

A single EDGEMATRIX Stream instance consists of three components.

EDGEMATRIX Stream Application Package
EDGEMATRIX Stream Controller
EDGEMATRIX Stream Pipeline

EDGEMATRIX Stream Application Package¶

An EDGEMATRIX Stream Application Package is a encrypted file with a public key of a licensed device that consists of the followings.

A config file
A Python file that contains a developer defined callback function
A resource folder that contains any other files like an AI model binary

A stream config file contains not only various information about this application package, but also does event item definitions.

A callback function in a Python file is called back when a signal is generated from an EDGEMATRIX Stream pipeline, then generates events as defined in the event definitions.

An EdgeSteam pipeline is constructed based on the information defined in a config file, by referring to files in a resource folder.

EDGEMATRIX Stream Controller¶

An EDGEMATRIX Stream Controller is a controller class that create an EDGEMATRIX Stream pipeline by reading a config file. Whenever a signal is generated, it calls a callback function, receive events, then execute an action if such an event matches to an event.

What kind of event is generated is up to an application, but what action is executed is up to an end user.

So, an end user is allowed to define an action rule by using those events defined in a config file.

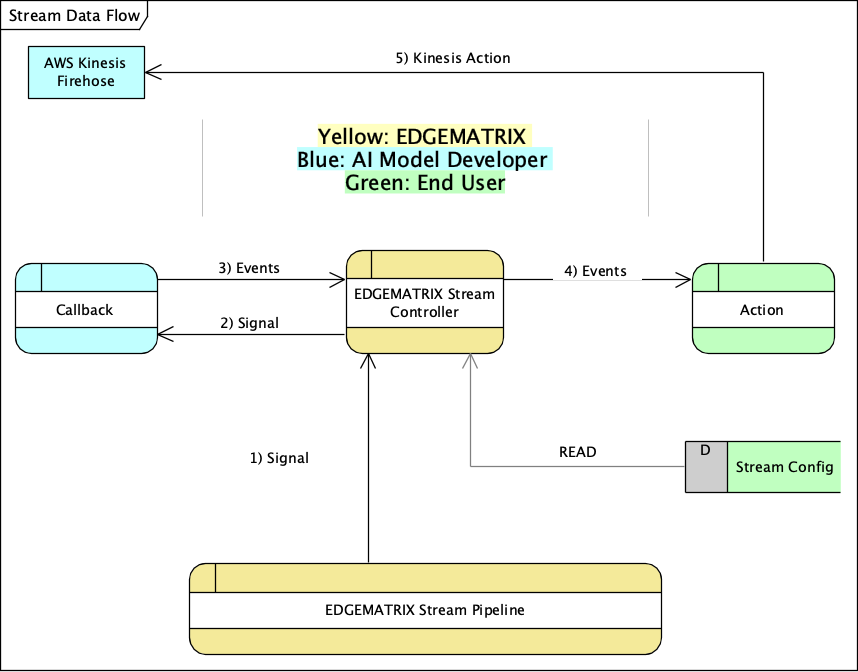

These interactions are illustrated as below.

EDGEMATRIX Stream Pipeline¶

An EDGEMATRIX Stream pipeline is a GStreamer pipeline running inside a GStremaer server process.

By running multiple pipelines inside a server process, it can efficiently share common elements like RTSP, decoder, and encoder.

You will find this architecture is critical when multiple webrtc clients connect to the same stream.

Also, we have two visionary pipelines as our goals.

A single EDGEMATRIX Stream pipeline consists of multiple AI model developers

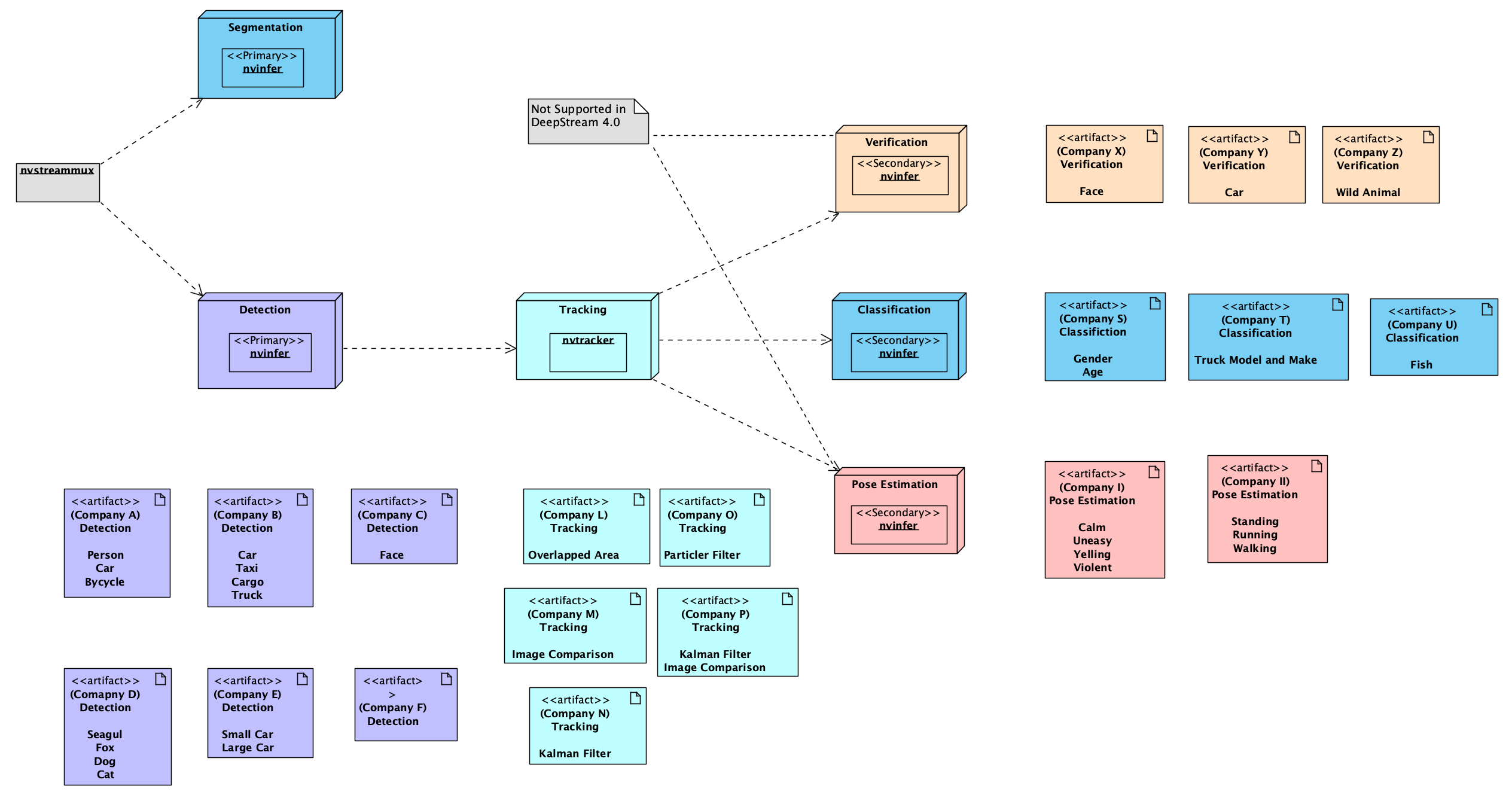

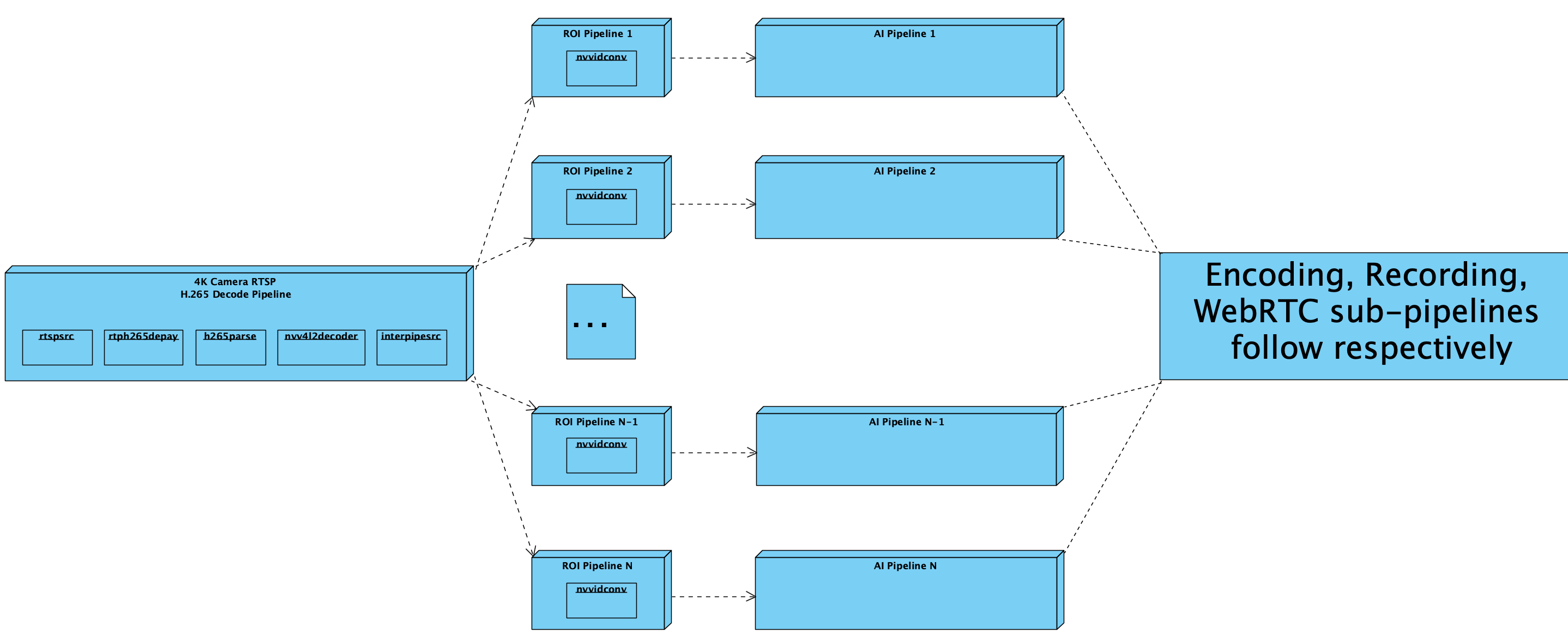

A single 4K RTSP stream shared among several EDGEMATRIX Stream pipelines
