Quick Start

  1. Update to the latest version

    1. Check the current version
    2. Run an update script

  2. Create a new EAP by copying from a template EAP

    1. runtoolkit and sdk_home
    2. Launch the EDGEMATRIX Stream Toolkit application
    3. Create a new EAP
    4. Select the EAP

  3. Validate the new EAP

    1. Open a validation dialog
    2. Run a validation
    3. Use your own sample siginal to validate

  4. Test the new EAP

    1. Execute, Choose a stream and Create an EAP package
    2. Play a pipeline
    3. Stop a pipeline
    4. Movie files made by record actions

Update to the latest version

Before starting, please update to the latest version.

Check the current version

Run the following command to check the currently installed version.

$ apt show python3-edgematrix-stream-toolkit
Package: python3-edgematrix-stream-toolkit
Version: 1.3.0b3-1
Priority: optional
Section: python
Source: edgematrix-stream-toolkit
Maintainer: Takenori Sato <tsato@edgematrix.com>
Installed-Size: 272 kB
Depends: python3-boto3, python3-gpg, python3-pycryptodome, python3-pysnmp4, python3-requests, python3:any (>= 3.3.2-2~), edgematrix-stream (>= 1.7.0), edgematrix-stream (<< 1.8.0), python3-emisecurity (>= 1.1.0), python3-emisecurity (<< 1.2.0)
Download-Size: 40.0 kB
APT-Manual-Installed: yes
APT-Sources: https://apt.console.edgematrix.com/airbase/apt/debian bionic/main arm64 Packages
Description: EDGEMATRIX Stream Toolkit allows an AI model developer to build, test, and package an EAP (EDGEMATRIX Stream Application Package).

In the example above, the version is 1.2.0b7-1.

Run an update script

Run the following command to try updating to the latest version.

/mnt/nvme/toolkit_home$ cd bin/
/mnt/nvme/toolkit_home/bin$ ./update_toolkit.sh
[sudo] password for nvidia:

a local proxy is launching...
a local proxy is launching...
a local proxy is launching...
Get:1 file:/var/cuda-repo-10-0-local-10.0.326  InRelease
Ign:1 file:/var/cuda-repo-10-0-local-10.0.326  InRelease
Get:2 file:/var/visionworks-repo  InRelease
Ign:2 file:/var/visionworks-repo  InRelease
Get:3 file:/var/visionworks-sfm-repo  InRelease
Ign:3 file:/var/visionworks-sfm-repo  InRelease
Get:4 file:/var/visionworks-tracking-repo  InRelease
Ign:4 file:/var/visionworks-tracking-repo  InRelease
Get:5 file:/var/cuda-repo-10-0-local-10.0.326  Release [574 B]
Get:6 file:/var/visionworks-repo  Release [1,999 B]
Get:7 file:/var/visionworks-sfm-repo  Release [2,003 B]
Get:5 file:/var/cuda-repo-10-0-local-10.0.326  Release [574 B]
Get:8 file:/var/visionworks-tracking-repo  Release [2,008 B]
Get:6 file:/var/visionworks-repo  Release [1,999 B]
Get:7 file:/var/visionworks-sfm-repo  Release [2,003 B]
Get:8 file:/var/visionworks-tracking-repo  Release [2,008 B]
Hit:12 http://ports.ubuntu.com/ubuntu-ports bionic InRelease
Hit:15 https://repo.download.nvidia.com/jetson/common r32 InRelease
Get:16 http://ports.ubuntu.com/ubuntu-ports bionic-updates InRelease [88.7 kB]
Get:17 https://apt.console.edgematrix.com/airbase/apt/debian bionic InRelease [2,409 B]
Get:18 https://repo.download.nvidia.com/jetson/t210 r32 InRelease [2,555 B]
Get:19 http://ports.ubuntu.com/ubuntu-ports bionic-backports InRelease [74.6 kB]
Hit:14 https://packagecloud.io/github/git-lfs/ubuntu bionic InRelease
Get:20 http://ports.ubuntu.com/ubuntu-ports bionic-security InRelease [88.7 kB]
Get:21 http://ports.ubuntu.com/ubuntu-ports bionic-updates/main arm64 DEP-11 Metadata [298 kB]
Get:22 http://ports.ubuntu.com/ubuntu-ports bionic-updates/universe arm64 DEP-11 Metadata [269 kB]
Get:23 http://ports.ubuntu.com/ubuntu-ports bionic-backports/universe arm64 DEP-11 Metadata [7,968 B]
Get:24 http://ports.ubuntu.com/ubuntu-ports bionic-security/main arm64 DEP-11 Metadata [34.5 kB]
Get:25 http://ports.ubuntu.com/ubuntu-ports bionic-security/universe arm64 DEP-11 Metadata [36.9 kB]
Fetched 903 kB in 3s (286 kB/s)
Reading package lists... Done
Building dependency tree
Reading state information... Done
149 packages can be upgraded. Run 'apt list --upgradable' to see them.
Reading package lists... Done
Building dependency tree
Reading state information... Done
python3-edgematrix-stream-toolkit is already the newest version (1.3.0b3-1).
0 upgraded, 0 newly installed, 0 to remove and 149 not upgraded.

Note that Get:19 https://apt.console.edgematrix.com/airbase/apt/debian bionic InRelease is the private APT repository by EDGEMATRIX that can be accessed only an authorized device.

In the example above, the sdk was confirmed as the latest version.

Create a new EAP by copying from a template EAP

At first, let’s explore a command line program and the main directory you work on. Then, launch the EDGEMATRIX Stream Toolkit application, then create a new EAP application from one of templates.

runtoolkit and toolkit_home

The command line program to launch the toolkit application is runtoolkit.

And the main directory you work on is toolkit_home, which is mounted on a secondary drive.

/mnt/nvme/toolkit_home$ runtoolkit --help
usage: EDGEMATRIX Stream Toolkit [-h] [--verbose] [-d DEVICEID] [-s SECRETKEY]
                                 toolkit_home

positional arguments:
  toolkit_home          A folder path of the toolkit_home

optional arguments:
  -h, --help            show this help message and exit
  --verbose, -v         if set, the logging level is set as DEBUG
  -d DEVICEID, --deviceid DEVICEID
                        use this deviceid if set
  -s SECRETKEY, --secretkey SECRETKEY
                        use this secret key if set

Launch the EDGEMATRIX Stream Toolkit application

Launch the EDGEMATRIX Stream Toolkit application by executing runtoolkit.

nvidia@nvidia-desktop:/mnt/nvme/toolkit_home$ runtoolkit ./

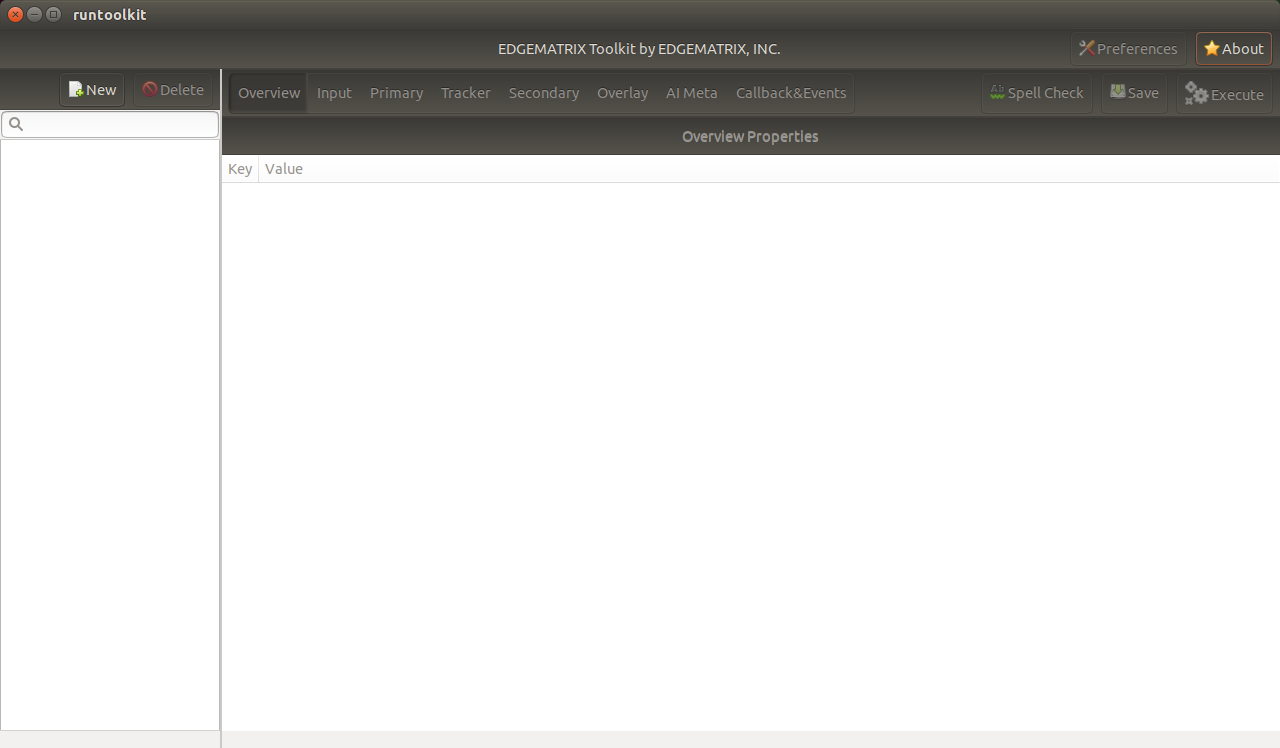

Then, the following window will be shown.

_images/launched.png

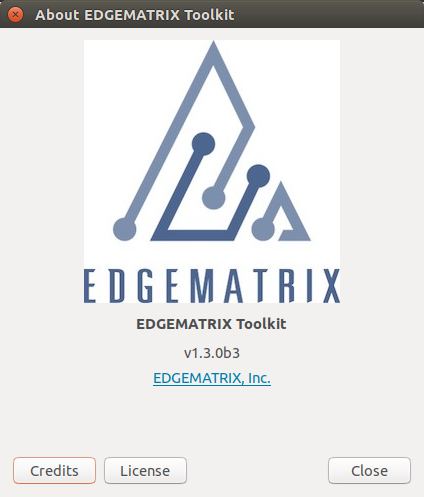

By clicking About button, you can check the version.

_images/about.png

Now this time, let’s create a new applicatoin that counts a vehicle by car color.

Create a new EAP

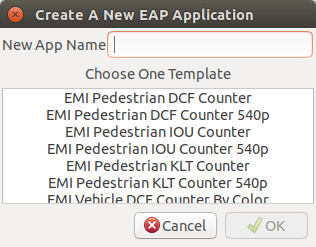

Press New, then you will see a dialog below.

_images/new_eap_dialog.png

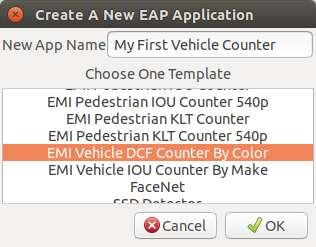

Then, enter “My First Vehicle Counter”, select EMI Vehicle DCF Counter By Color, then click OK.

_images/new_eap_dialog_filled.png

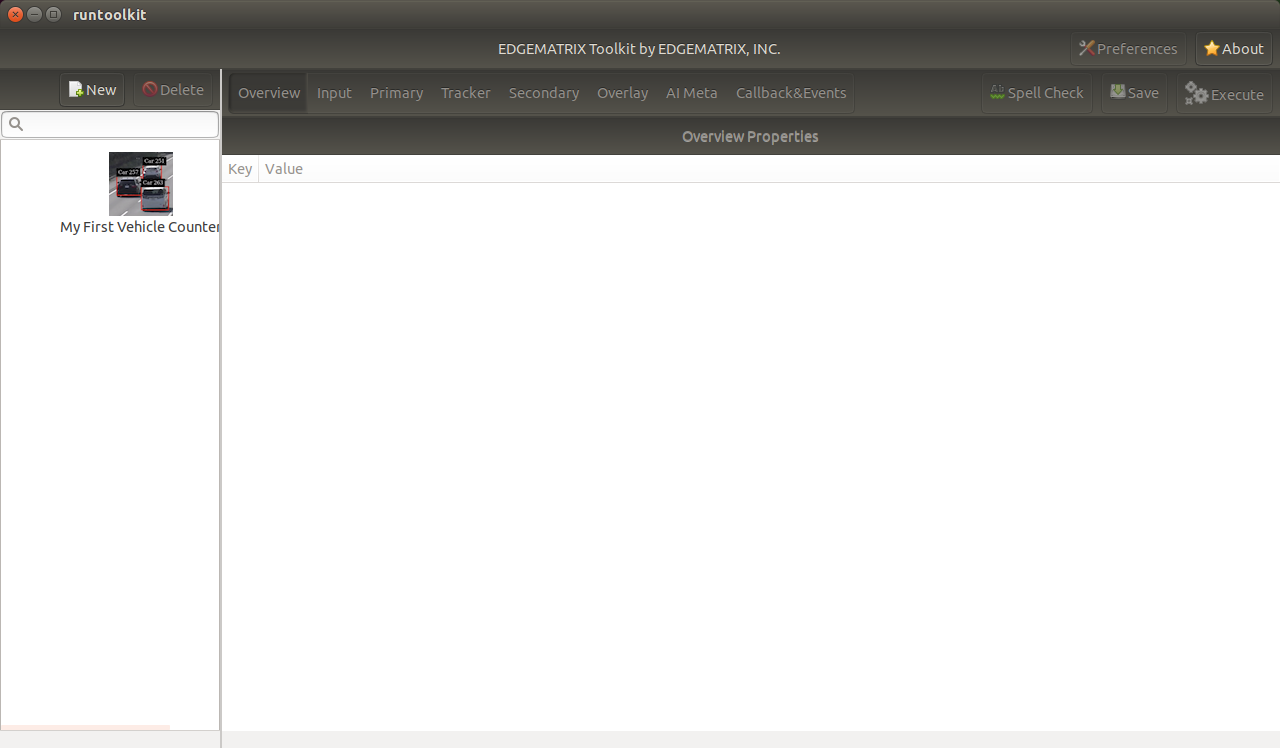

This will copy the template to create your application. Now the Toolkit window shows your application as follows.

_images/new_eap_created.png

As below, your application folder contains exactly the same structure as the copied template folder.

/mnt/nvme/toolkit_home$ diff applications/My\ First\ Vehicle\ Counter/ templates/EMI\ Vehicle\ DCF\ Counter\ By\ Color/
Common subdirectories: applications/My First Vehicle Counter/resource and templates/EMI Vehicle DCF Counter By Color/resource

Select a new EAP

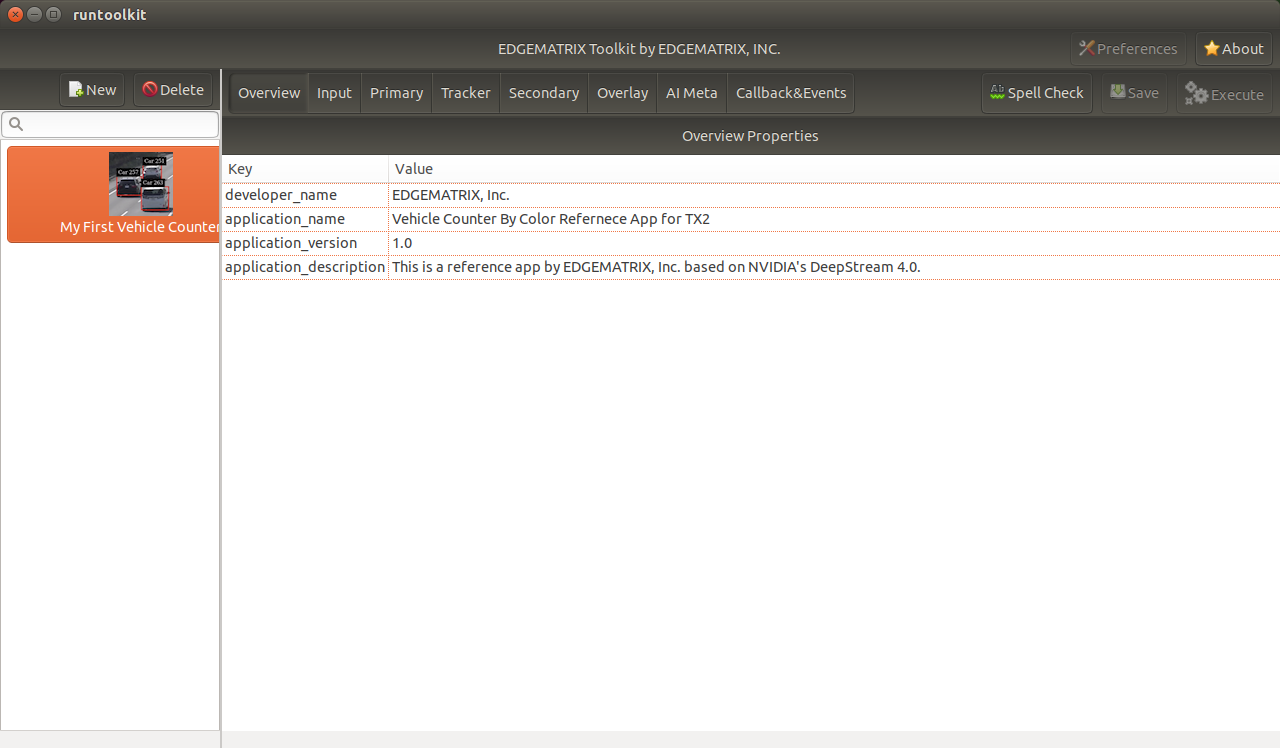

Now let’s select the newly created EAP application in the sidebar.

_images/new_eap_selected.png

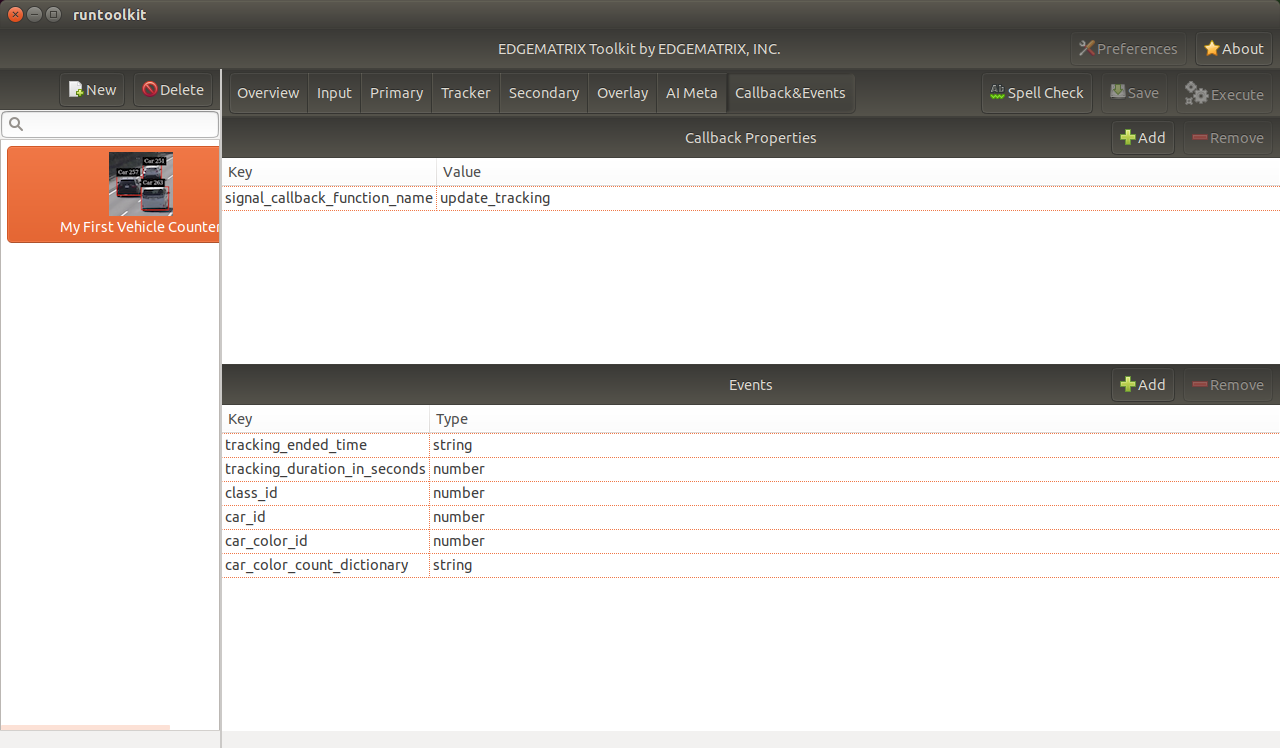

Then, it will show you all the configurations. By clicking each of configuration groups, you can see its detail. For example, you can see the followings when you click Callback&Events.

_images/new_eap_selected_callbackevents.png

Let’s check what’s inside the new application folder.

/mnt/nvme/toolkit_home$ ls -l applications/My\ First\ Vehicle\ Counter/
total 32
-rw-r--r-- 1 nvidia nvidia  6905 Feb 26 00:53 emi_signal_callback.py
-rw-r--r-- 1 nvidia nvidia  1543 Feb  2 13:52 emi_stream_config.json
-rw-r--r-- 1 nvidia nvidia 13271 Dec 24 23:42 icon.png
drwxr-xr-x 3 nvidia nvidia  4096 Apr 10 14:36 resource
/mnt/nvme/toolkit_home$ ls -lR applications/My\ First\ Vehicle\ Counter/resource/
'applications/My First Vehicle Counter/resource/':
total 3572
-rw-r--r-- 1 nvidia nvidia    3240 Apr 10 14:36 dstest1_pgie_config.txt
-rw-r--r-- 1 nvidia nvidia    3413 Feb  2 14:22 dstest2_sgie1_config.txt
-rw-r--r-- 1 nvidia nvidia 3638560 Jan 13 08:19 libnvds_nvdcf.so
drwxr-xr-x 4 nvidia nvidia    4096 Jan 13 13:21 models
-rw-r--r-- 1 nvidia nvidia    1684 Jan  1 19:03 tracker_config.yml

'applications/My First Vehicle Counter/resource/models':
total 8
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 14:36 Primary_Detector
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 14:38 Secondary_CarColor

'applications/My First Vehicle Counter/resource/models/Primary_Detector':
total 13988
-rw-r--r-- 1 nvidia nvidia    1126 Dec 12 08:14 cal_trt.bin
-rw-r--r-- 1 nvidia nvidia      28 Dec 12 08:14 labels.txt
-rw-r--r-- 1 nvidia nvidia 6244865 Dec 12 08:14 resnet10.caffemodel
-rw-r--r-- 1 nvidia nvidia 8057761 Apr  9 03:01 resnet10.caffemodel_b1_fp16.engine
-rw-r--r-- 1 nvidia nvidia    7605 Dec 12 08:14 resnet10.prototxt

'applications/My First Vehicle Counter/resource/models/Secondary_CarColor':
total 17228
-rw-r--r-- 1 nvidia nvidia    2078 Dec 10 08:39 cal_trt.bin
-rw-r--r-- 1 nvidia nvidia      71 Dec 10 08:39 labels.txt
-rw-r--r-- 1 nvidia nvidia  150543 Dec 10 08:39 mean.ppm
-rw-r--r-- 1 nvidia nvidia 9017648 Dec 10 08:39 resnet18.caffemodel
-rw-r--r-- 1 nvidia nvidia 8444530 Apr  9 02:59 resnet18.caffemodel_b16_fp16.engine
-rw-r--r-- 1 nvidia nvidia   14058 Dec 10 08:39 resnet18.prototxt

Please note for now that this application uses trained model binaries as they are. You will see later how they are protected as an EAP package.

Validate the new EAP

In a real project, you will customize this app as needed. Then, once ready, the first thing to try is to validate if it is valid.

Open a validation dialog

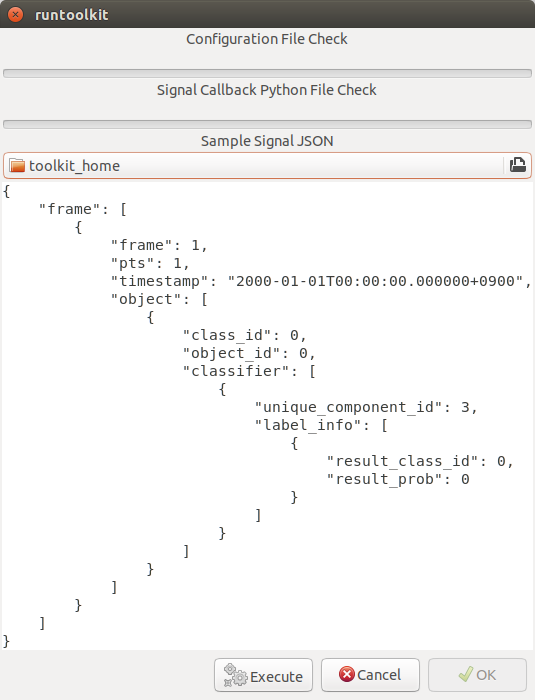

Press Spell Check button, which may sound odd, but anyway, then, you will see a dialog as below.

_images/validate_eap_dialog.png

This shows two check results not shown yet and the sample signal json to test the callback function.

Run a validation

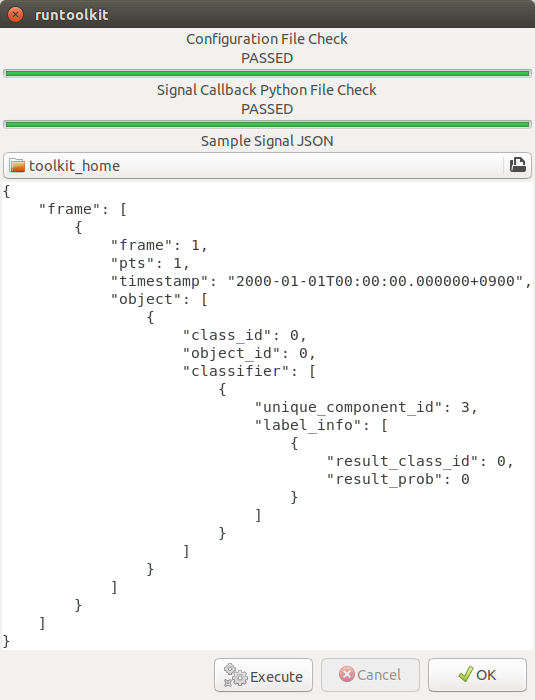

Press Execute, and see the results.

_images/validate_eap_dialog_passed.png

Nothing is customized yet, so it should pass as above.

Use your own sample siginal to validate

But, if you have customized your callback, then, you are likely to test a different sample json. In such a case, you can write your own sample, then use it for this validation.

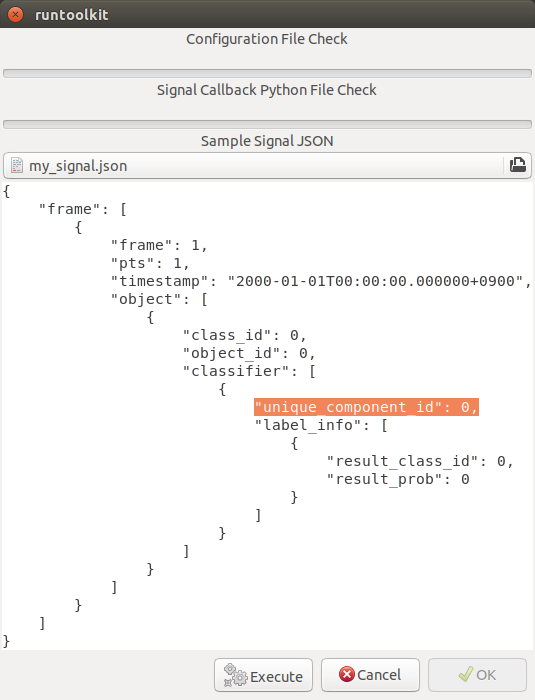

Click the file chooser, select your file, then, you are ready to validate with your own sample as below.

_images/validate_eap_dialog_sample_signal.png

In this case, the value of unique_component_id was changed.

Test the new EAP

If you pass the validation, Execute button becomes active for you to run your application.

Execute, Choose a stream and Create an EAP package

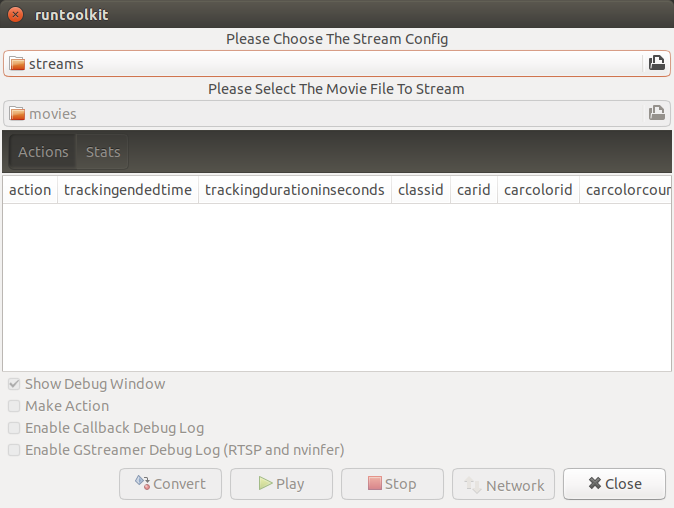

By clicking the Execute button, it will show you an execution dialog.

_images/test_eap_dialog.png

At first, you need to choose a stream where your application will run. By default, streams folder of the toolkit home directory is chosen. Click the file chooser, open the vehicle_stream folder, then select vehicle_counter_stream_configuration.json.

The streams folder and the movies folder look as below.

nvidia@nvidia-desktop:/mnt/nvme/toolkit_home$ ls -l streams/
total 44
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 20:42 face_net
drwxr-xr-x 2 nvidia nvidia 4096 Feb 14 10:09 line_stream
drwxr-xr-x 2 nvidia nvidia 4096 Jan 15 17:18 no_app_stream
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 20:42 pedestrian_stream
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 08:56 pedestrian_stream_bottomleft
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 08:56 pedestrian_stream_upperleft
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 08:56 pedestrian_stream_upperright
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 09:44 snmp_stream
drwxr-xr-x 2 nvidia nvidia 4096 Apr 23 11:45 vehicle_stream
drwxr-xr-x 4 nvidia nvidia 4096 Apr 24 06:58 yolo_stream
drwxr-xr-x 2 nvidia nvidia 4096 Apr 10 08:56 yolo_stream_bottomright
nvidia@nvidia-desktop:/mnt/nvme/toolkit_home$ ls -l movies/
total 7470252
-rw-r--r-- 1 nvidia nvidia  129384358 Jan  5 19:48 ChuoHwy-720p-faststart.mp4
-rw-r--r-- 1 nvidia nvidia 1494279921 Jan  1 21:29 Highway-4K@30p-faststart.mp4
-rw-r--r-- 1 nvidia nvidia  154023977 Jan 12 18:01 Highway-4K-4Mbs-faststart.mp4
-rw-r--r-- 1 nvidia nvidia  663620758 Jan 12 20:42 Park-FHD@30p-10MBs-faststart.mp4
-rw-r--r-- 1 nvidia nvidia  251927313 Jan 12 20:26 Park-FHD@30p-4MBs-faststart.mp4
-rw-r--r-- 1 nvidia nvidia 1668565295 Jan  1 21:31 Park-FHD@60p-faststart.mp4
-rw-r--r-- 1 nvidia nvidia  285564648 Mar  4 19:08 shinbashi_4MB.mp4
-rw-r--r-- 1 nvidia nvidia  770571528 Jan 12 20:42 Street-FHD@30p-10MBs-faststart.mp4
-rw-r--r-- 1 nvidia nvidia  278477073 Jan 12 20:26 Street-FHD@30p-4MBs-faststart.mp4
-rw-r--r-- 1 nvidia nvidia 1953085229 Jan  1 21:32 Street-FHD@60p-faststart.mp4

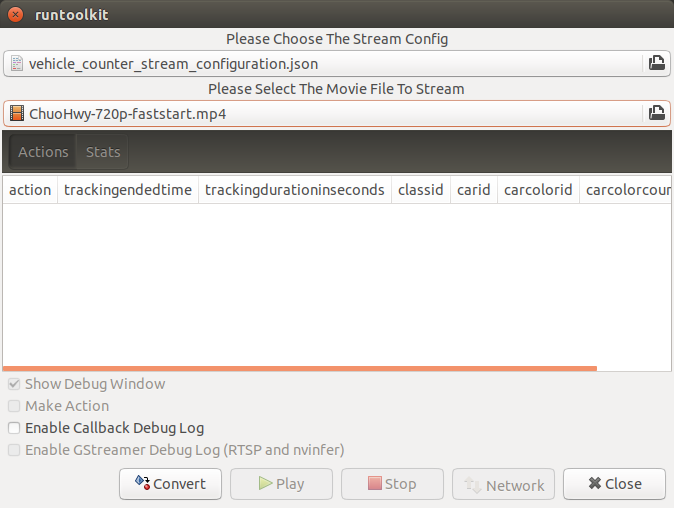

Next, choose a movie file to use as a local RTSP streaming as below.

_images/test_eap_dialog_selected.png

Now, Convert button becomes active for you to make an EAP package in the chosen stream folder.

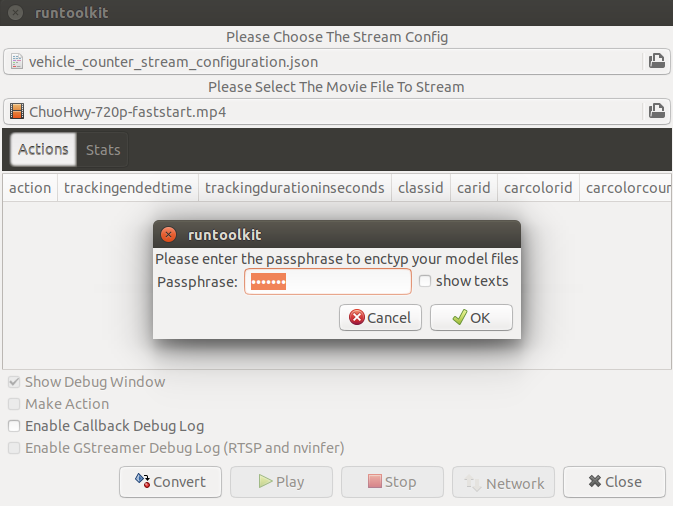

Press the Convert button, then a popup window to enter a passphrase is shown.

_images/test_eap_dialog_passphrase.png

It is the passphrase to protect your model binary. An EAP will be encrypted by the private key of each target device, and placed safely on an encrypted secondary drive of the target device, which is futher protected by a secureboot from its root and whose root user is not exposed. But, the last protection of your precious model binary is this passphrase. So, please choose carefully when you make your submission package.

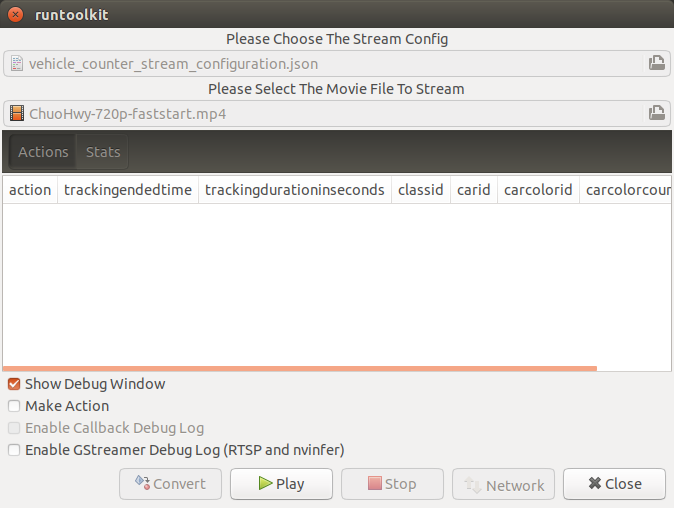

Enter your passphrase, press OK, then the packaging task will run for a while as a spinner is shown. The dialog window will looks as below once completes.

_images/test_eap_dialog_ready_to_play.png

Play a pipeline

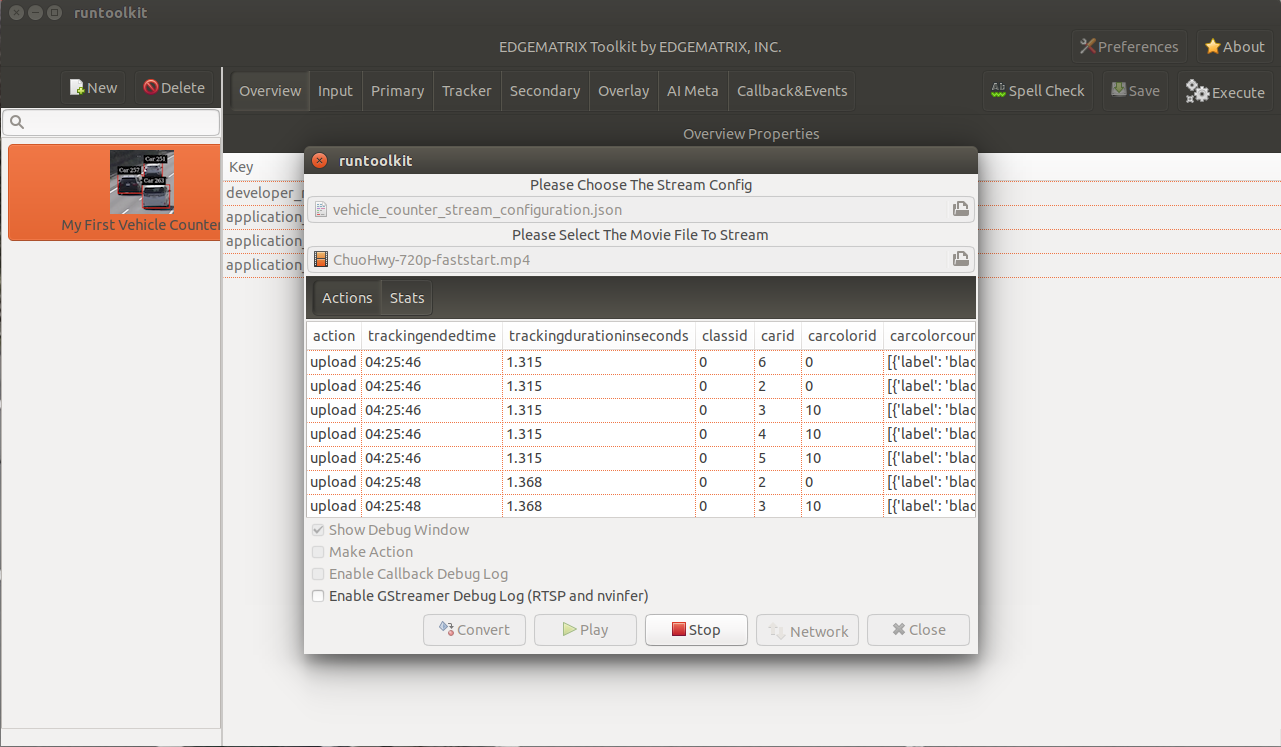

Now you are ready to run your application in the stream. Click Play button, and wait for a few seconds, you’ll see events are getting generated and passed as actions.

_images/test_eap_dialog_playing.png

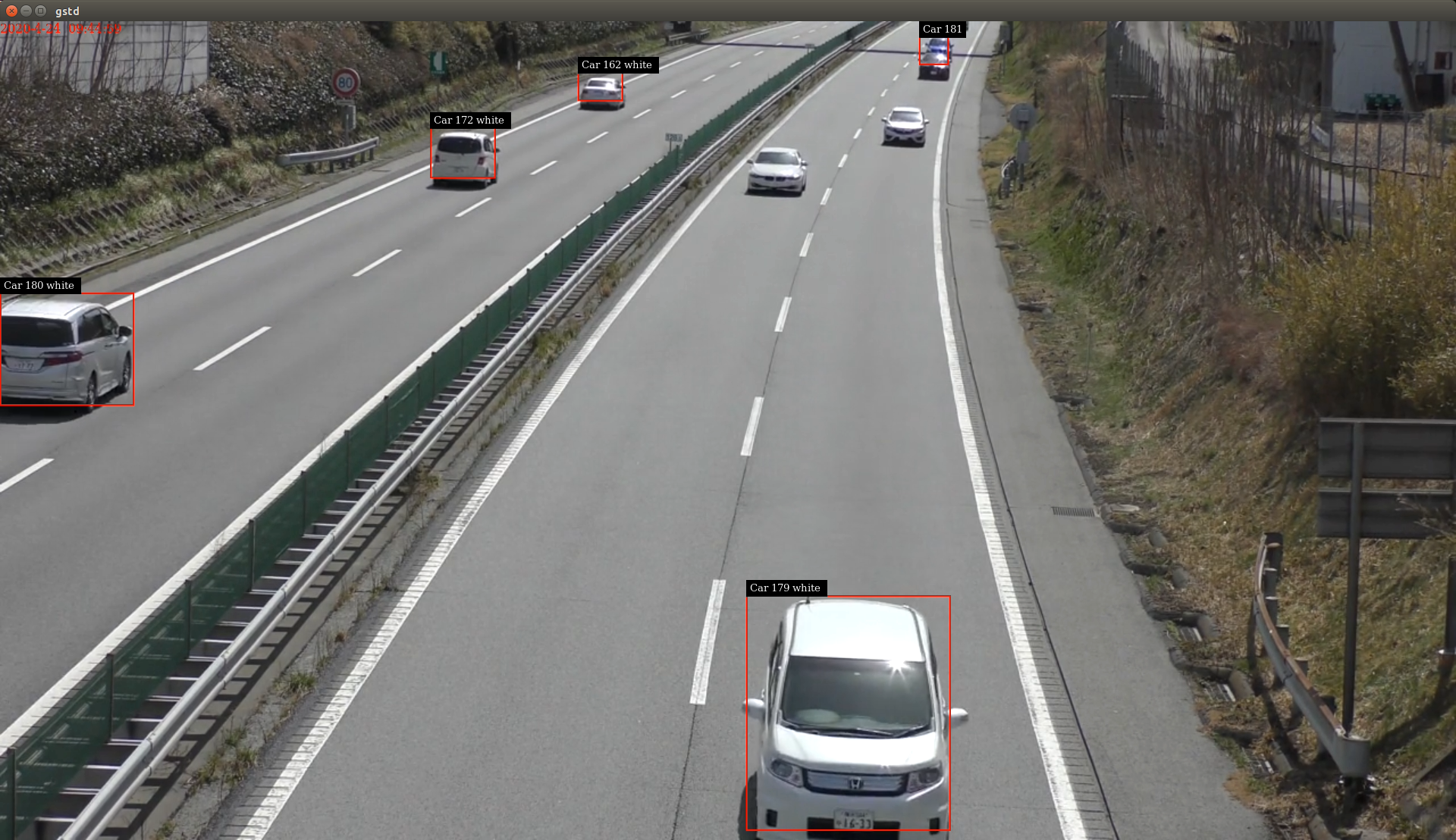

Note that Show Debug Window is checked. The debug window is shown, too.

_images/test_eap_dialog_playing_debug.png

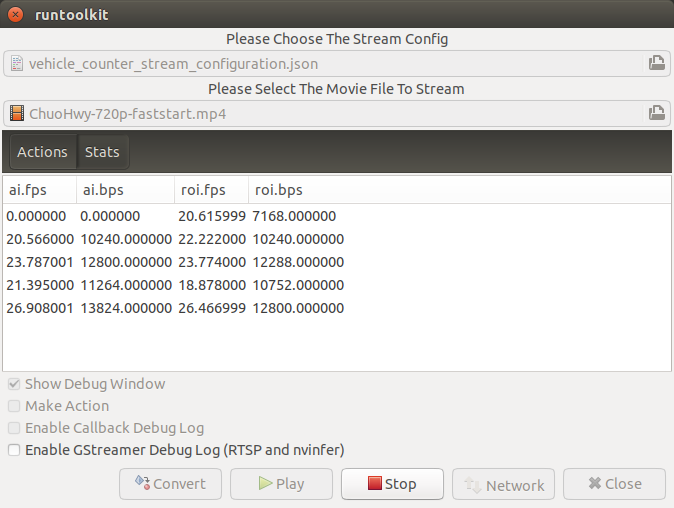

Also, some stats about a running pipeline can be checked.

_images/test_eap_dialog_stats.png

Let’s check the EAP package built. An agent process is already up and running, so has already extracted the EAP package in the uncompressed_files folder.

/mnt/nvme/toolkit_home$ ls -l streams/vehicle_stream/
total 50188
-rw-r--r-- 1 nvidia nvidia        0 Apr 24 09:43 gstd.log
drwxr-xr-x 2 nvidia nvidia     4096 Apr 24 09:44 recordings
-rw-r--r-- 1 nvidia nvidia 18460328 Apr 24 09:46 stream.log
drwxr-xr-x 3 nvidia nvidia     4096 Apr 24 09:43 uncompressed_files
-rw-r--r-- 1 nvidia nvidia     1242 Jan 15 17:45 vehicle_counter_stream_configuration.json
-rw-r--r-- 1 nvidia nvidia 32918721 Apr 24 09:41 vehicle_counter.zip
/mnt/nvme/toolkit_home$ ls -l streams/vehicle_stream/uncompressed_files/vehicle_stream/
total 32
-rw-r--r-- 1 nvidia nvidia  6905 Apr 24 09:43 emi_signal_callback.py
-rw-r--r-- 1 nvidia nvidia  1543 Apr 24 09:43 emi_stream_config.json
-rw-r--r-- 1 nvidia nvidia 13271 Apr 24 09:43 icon.png
drwxr-xr-x 3 nvidia nvidia  4096 Apr 24 09:43 resource

The folder structure exactly the same as the one of the application folder as you have seen. But there are a couple of exceptions. All the trained binaries and related files are encrypted. You can tell by a file extention. Files with .gpg are encrypted with GnuPG.

/mnt/nvme/toolkit_home$ ls -l streams/vehicle_stream/uncompressed_files/vehicle_stream/resource/
total 3572
-rw-r--r-- 1 nvidia nvidia    3240 Apr 24 09:43 dstest1_pgie_config.txt
-rw-r--r-- 1 nvidia nvidia    3413 Apr 24 09:43 dstest2_sgie1_config.txt
-rw-r--r-- 1 nvidia nvidia 3638560 Apr 24 09:43 libnvds_nvdcf.so
drwxr-xr-x 4 nvidia nvidia    4096 Apr 24 09:43 models
-rw-r--r-- 1 nvidia nvidia    1684 Apr 24 09:43 tracker_config.yml
/mnt/nvme/toolkit_home$ ls -l streams/vehicle_stream/uncompressed_files/vehicle_stream/resource/models/total 8
drwxr-xr-x 2 nvidia nvidia 4096 Apr 24 09:43 Primary_Detector
drwxr-xr-x 2 nvidia nvidia 4096 Apr 24 09:43 Secondary_CarColor
/mnt/nvme/toolkit_home$ ls -l streams/vehicle_stream/uncompressed_files/vehicle_stream/resource/models/Primary_Detector/
total 13992
-rw-r--r-- 1 nvidia nvidia    1126 Apr 24 09:43 cal_trt.bin
-rw-r--r-- 1 nvidia nvidia      28 Apr 24 09:43 labels.txt
-rw-r--r-- 1 nvidia nvidia 8059800 Apr 24 09:43 resnet10.caffemodel_b1_fp16.engine.gpg
-rw-r--r-- 1 nvidia nvidia 6246460 Apr 24 09:43 resnet10.caffemodel.gpg
-rw-r--r-- 1 nvidia nvidia    7679 Apr 24 09:43 resnet10.prototxt.gpg
/mnt/nvme/toolkit_home$ ls -l streams/vehicle_stream/uncompressed_files/vehicle_stream/resource/models/Secondary_CarColor/
total 17236
-rw-r--r-- 1 nvidia nvidia    2078 Apr 24 09:43 cal_trt.bin
-rw-r--r-- 1 nvidia nvidia      71 Apr 24 09:43 labels.txt
-rw-r--r-- 1 nvidia nvidia  150543 Apr 24 09:43 mean.ppm
-rw-r--r-- 1 nvidia nvidia 8446663 Apr 24 09:43 resnet18.caffemodel_b16_fp16.engine.gpg
-rw-r--r-- 1 nvidia nvidia 9019921 Apr 24 09:43 resnet18.caffemodel.gpg
-rw-r--r-- 1 nvidia nvidia   14134 Apr 24 09:43 resnet18.prototxt.gpg

This shows that no decrypted files on a disk. They are decrypted and processed in memory. So even if an AI Box is stolen, your precious trained model binaries won’t be exploited immediately.

Stop a pipeline

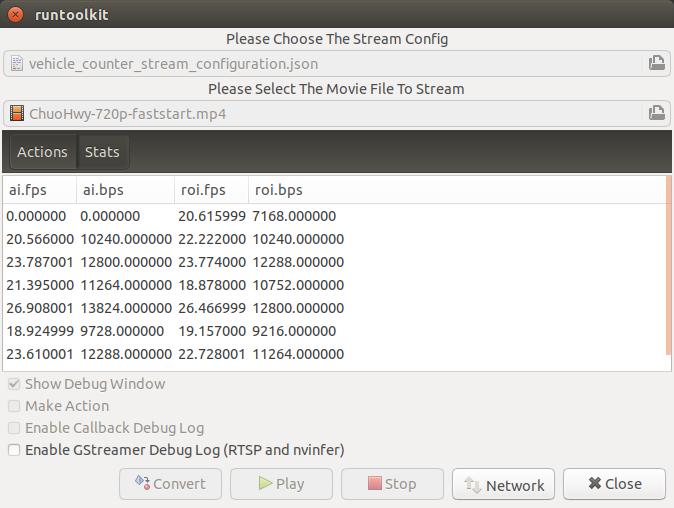

If your test gets done, press Stop to terminate the EAP application process.

_images/test_eap_dialog_stopped.png

Movie files made by record actions

At last, let’s check movie files left, which were made by record actions. Go to /mnt/nvme/toolkit_home/streams/vehicle_stream/recordings folder, then you’ll see some files as follows.

/mnt/nvme/toolkit_home$ ls -l streams/vehicle_stream/recordings/
total 52476
-rw-r--r-- 1 nvidia nvidia 12422309 Apr 24 09:44 vehicle_stream_7598_videorecord0_2020-04-24T09:43:45+0900.mp4
-rw-r--r-- 1 nvidia nvidia      595 Apr 24 09:44 vehicle_stream_7598_videorecord0_2020-04-24T09:44:22+0900.mp4
-rw-r--r-- 1 nvidia nvidia 41304112 Apr 24 09:46 vehicle_stream_7598_videorecord0_2020-04-24T09:44:31+0900.mp4
