Configurations¶
Overview¶
This is a configuration about an overview of an EAP.

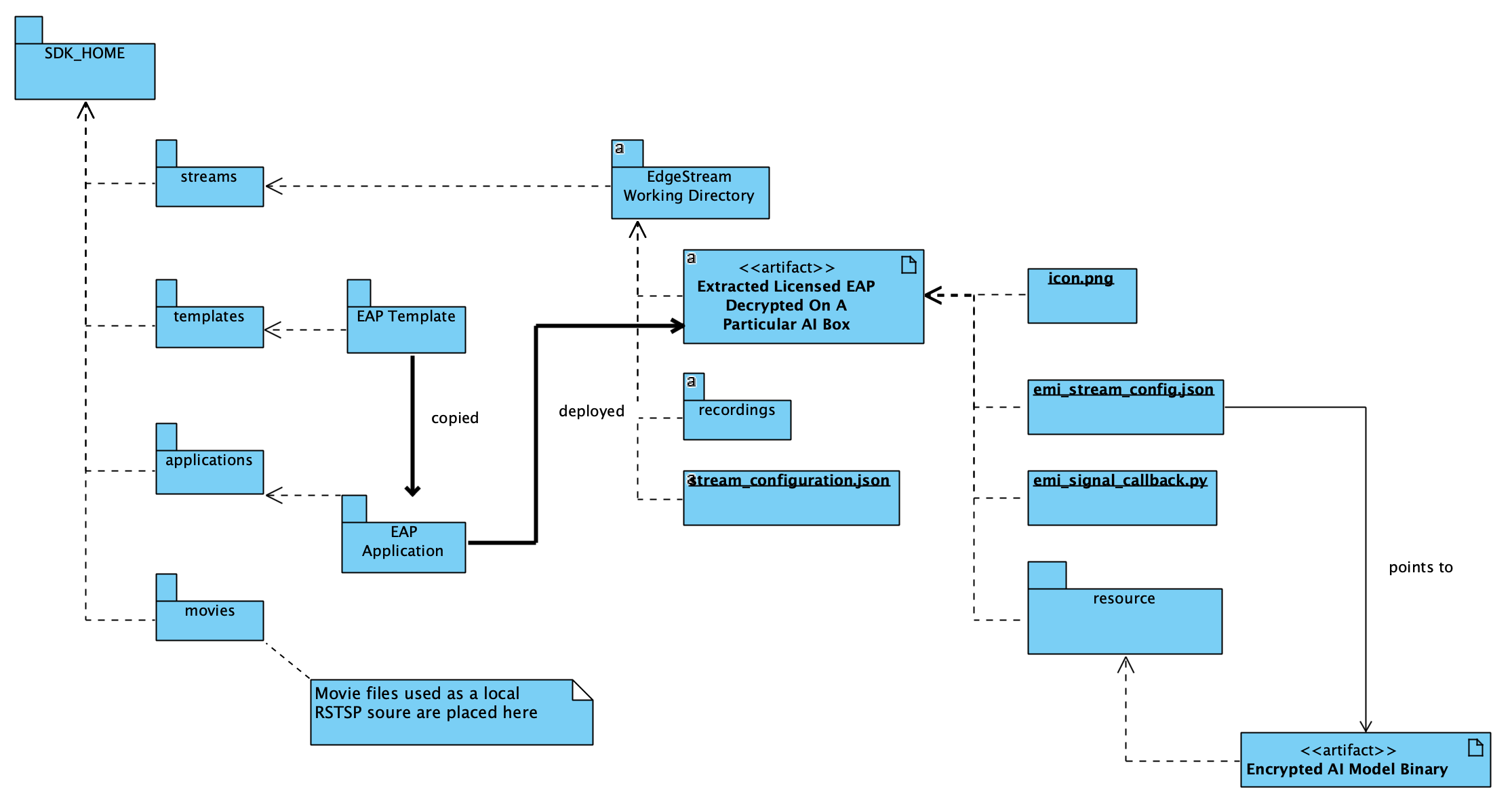

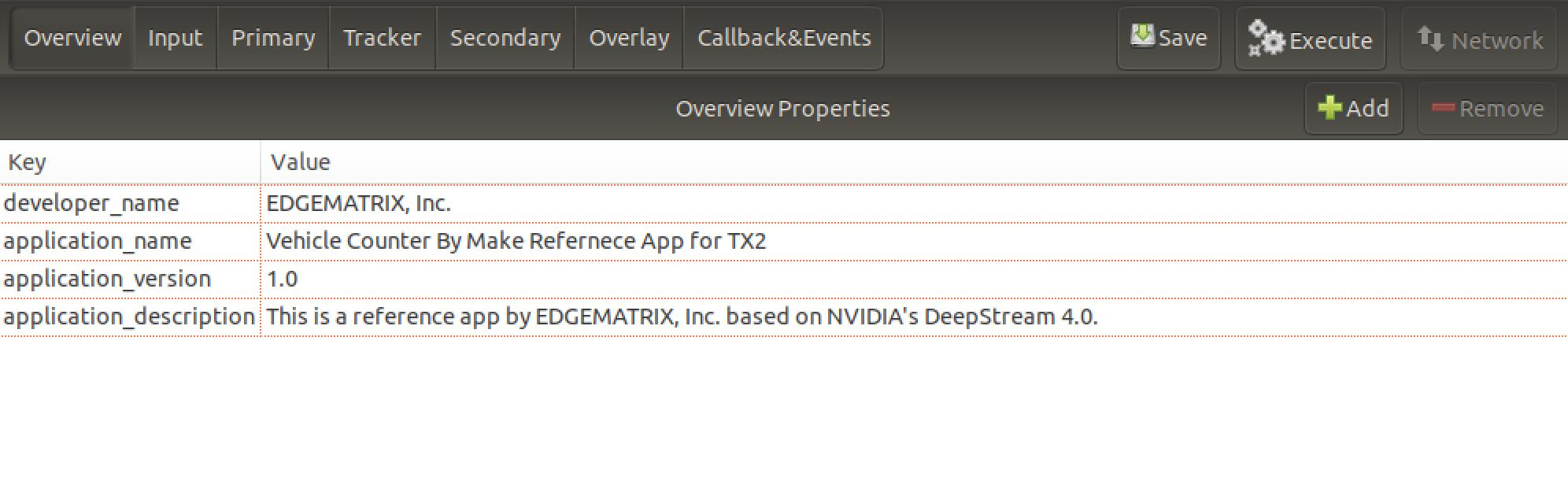

An example screenshot from the quick start example looks like this:
Input¶
This is a configuration about an input of a pipeline.
The GStreamer used for this is nvstreammux.
Please refer to the DeepStream Plugin Manual for details.
The mandatory properties are the following.
- width
- height

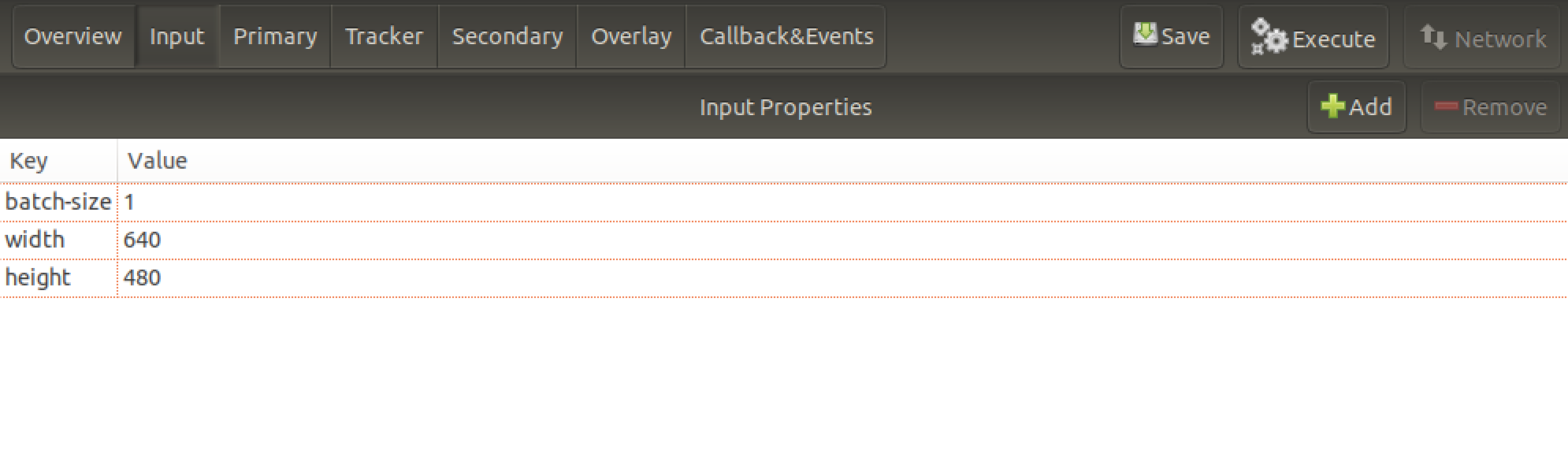

An example screenshot from the quick start example looks like this:
Please note that an end user is allowed to configure their own ROI over their RTSP stream.
Primary¶
This is a configuration about a primary inference of a pipeline.
The GStreamer used for this is nvinfer.
Please refer to the DeepStream Plugin Manual for details.
The mandatory properties are the following.
- process-mode == 1
- config-file-path
Note that model-engine-file property is a mandatory property, but can not be used here because the property of nvinfer as a GStreamer plugin needs to be an absolute path. So, please make sure to define in a config file of nvinfer as indicated by config-file-path.

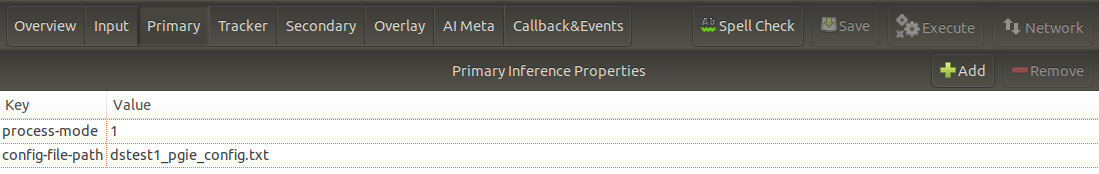

An example screenshot from the quick start example looks like this:
Tracker¶
This is a configuration about a tracker of a pipeline.
The GStreamer used for this is nvtracker.
Please refer to the DeepStream Plugin Manual for details.
The mandatory properties are the following.
- ll-config-file
- ll-lib-file

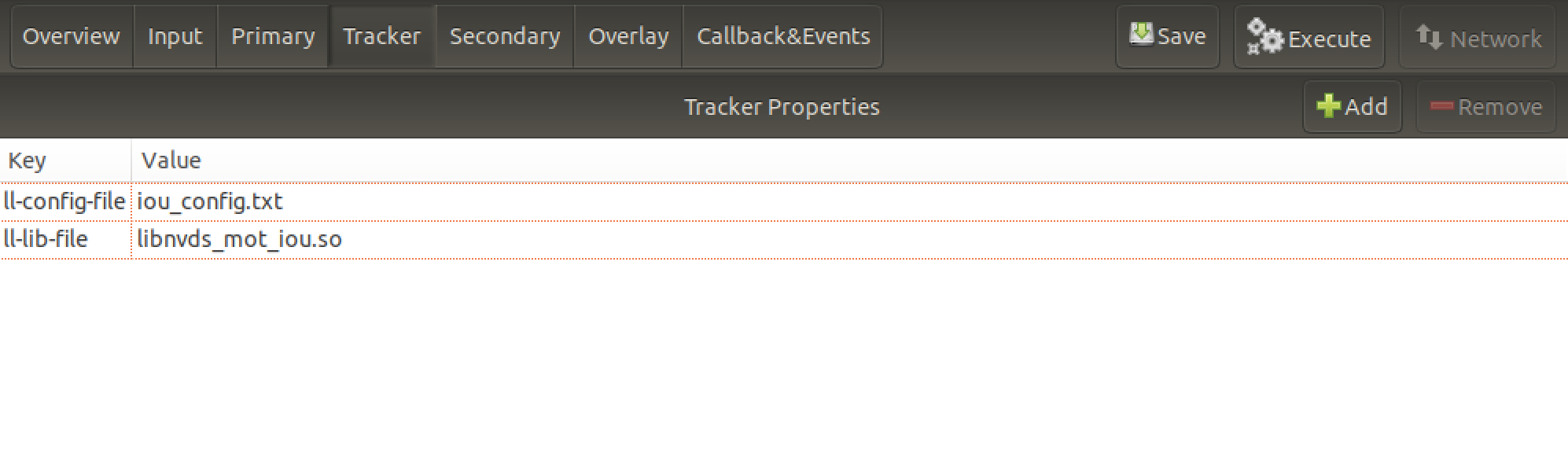

An example screenshot from the quick start example looks like this:
Secondary¶
This is a configuration about a secondary inference of a pipeline.
The GStreamer used for this is nvinfer.
Please refer to the DeepStream Plugin Manual for details.
The mandatory properties are the following.
- process-mode == 2
- config-file-path
Note that model-engine-file property is a mandatory property, but can not be used here because the property of nvinfer as a GStreamer plugin needs to be an absolute path. So, please make sure to define in a config file of nvinfer as indicated by config-file-path.

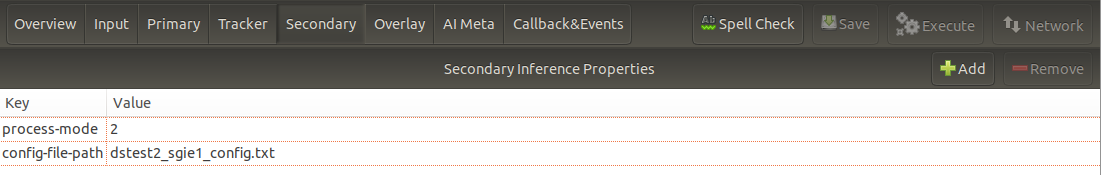

An example screenshot from the quick start example looks like this:
Overlay¶
This is a configuration about an overlay of a pipeline.
The GStreamer used for this is nvdsosd.
Please refer to the DeepStream Plugin Manual for details.

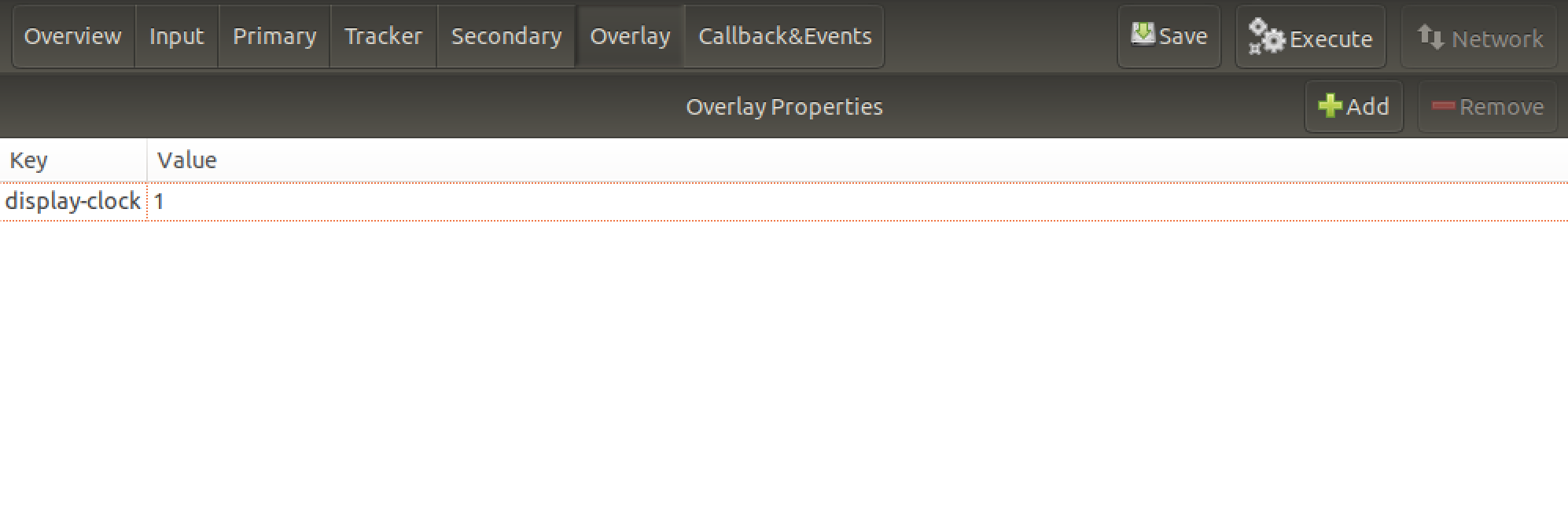

An example screenshot from the quick start example looks like this:
AI Meta¶
This is a configuration about a signaling of inference result of a pipeline.
This GStreamer element is a priprietary one by EdgeMatrix, Inc.
The only property available is signal-interval, and which is mandatory.
The signal-interval property is the interval between signals (in buffers). Change this property to reduce the frequency of emitted signals in non-critical applications.

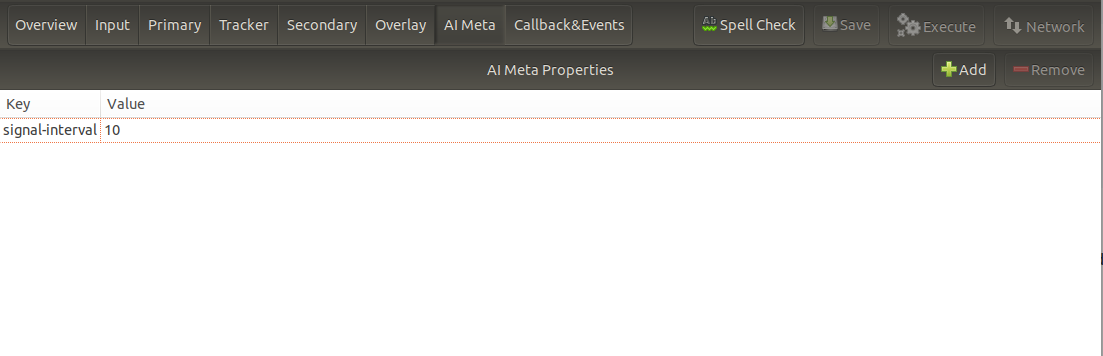

An example screenshot from the quick start example looks like this:
Signal¶
The structure of a signal is defined as follows by example.
{# Holds batch information containing frames from different sources.
"frame": [ # List of frame meta in the current batch
{
"frame_num": 0, # Current frame number of the source
"buf_pts": 0, # PTS of the frame
"timestamp": "2019-12-30T08:24:36.748-0600", # System timestamp when the buffer was received by the aimeta element
"object": [ #L ist of object meta in the current frame
{
"class_id": 0, # Index of the object class infered by the primary detector/classifier
"object_id": 65, # Unique ID for tracking the object. '-1' indicates the object has not been tracked
"confidence": 0,# Confidence value of the object, set by inference component
"rect_params": { # Structure containing the positional parameters of the object in the frame
"left": 1722, # Holds left coordinate of the box in pixels
"top": 601, # Holds top coordinate of the box in pixels
"width": 192, # Holds width of the box in pixels
"height": 166 # Holds height of the box in pixels
},
"text_params": { # Holds the text parameters of the overlay text
"display_text": "Car 65 audi " # Holds the text to be overlayed
},
"classifier": [ # List of classifier meta for the current object
{
"num_labels": 1, # Number of output labels of the classifier
"unique_component_id": 2, # Unique component id of the element that attached this metadata
"label_info": [ # List of label meta of the current classifier
{
"num_classes": 0, # Number of classes of the given label
"result_label": "audi", # String describing the label of the classified object
"result_class_id": 1, # Class id of the best result
"label_id": 0, # Label id in case of multi label classifier
"result_prob": 0.708984375 # Probability of best result
}
]
}
]
}
]
}
]
}
Callback and Events¶
This is a configuration about the callback function name and event definitions.

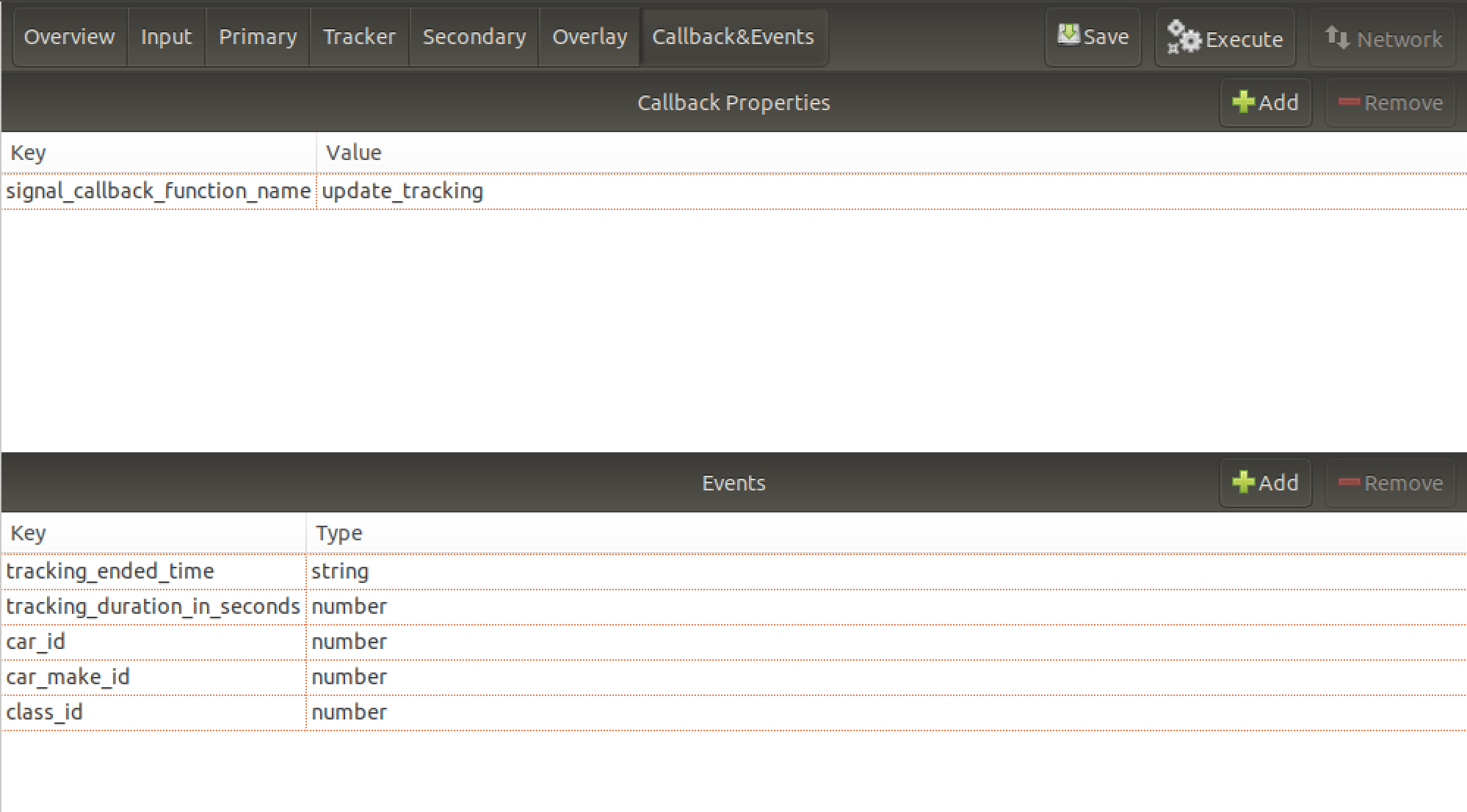

An example screenshot from the quick start example looks like this:
Callback¶
The callback function defined as the callback function name must exist in a python file “called emi_signal_callback.py”.
This is a python file in which source code represents a signal callback function to be activated if the conditions defined in the stream-configuration file are satisfied.
The signal callback file must at minimum comply with the following conditions:
- The file must be named emi_signal_callback.py
- Must define a method with the name defined in the emi_stream_config.json signal_callback_function_name field
- The method must return two objects
- a dictionary array where each element of the array contains at least the fields defined in the emi_stream_config.json event_item_keys field. This array can also be empty.
- a debug string that can be used for debugging. Nothing will be logged if an empty string is retruned.
- The python file will be compiled and executed in a sandbox environment based on Restricted Python. The allowed and restricted Python functionalities are documented below.
Allowed:
Secure exceptions are allowed. But the signal callback handler will fail if an exception is raised in the callback function. Here is a list of the allowed exceptions:
ArithmeticError
AssertionError
AttributeError
BaseException
BufferError
BytesWarning
DeprecationWarning
EnvironmentError
EOFError
Exception
FloatingPointError
FutureWarning
GeneratorExit
ImportError
ImportWarning
IndentationError
IndexError
IOError
KeyboardInterrupt
KeyError
LookupError
MemoryError
NameError
NotImplementedError
OSError
OverflowError
PendingDeprecationWarning
ReferenceError
RuntimeError
RuntimeWarning
StopIteration
SyntaxError
SyntaxWarning
SystemError
SystemExit
TabError
TypeError
UnboundLocalError
UnicodeError
UnicodeWarning
UserWarning
ValueError
Warning
ZeroDivisionError
For loops are allowed when iterating over lists, tuples or strings.
Flow control statements are allowed:, break, continue, pass
Using format() on a str is not safe but it is allowed
The following built-in functions are allowed:
abs()
callable()
chr()
divmod()
hash()
hex()
id()
isinstance()
issubclass()
len()
oct()
ord()
pow()
range()
repr()
round()
zip()
Module imports are potentially dangerous but the datetime package and all its sub-modules are allowed.
New classes, parameters, and methods are allowed
The following data types are allowed:
bool
complex
float
int
slice
str
tuple
Only in-place operators are restricted. This is the list of allowed operators:
+
-
*
/
%
**
//
&
|
^
~
<<
>>
==
!=
>
<
>=
<=
and
or
not
is
is not
in
not in
=
The following builtin values are allowed:
False
None
True
While loops are allowed
Restricted:
Attribute manipulation with builtin functions is restricted:
setattr()
getattr()
delattr()
hasattr()
Attribute names that start with "_" are restricted
compile() is restricted because it can be used to produce new unrestricted code
For loops are restricted when iterating over dict
dir() is restricted because it returns all properties and methods of an object
Direct IO is restricted:
execfile()
file()
input()
open()
raw_input()
eval() calls are restricted
The following exceptions are restricted:
BlockingIOError
BrokenPipeError
ChildProcessError
ConnectionAbortedError
ConnectionError
ConnectionRefusedError
ConnectionResetError
FileExistsError
FileNotFoundError
InterruptedError
IsADirectoryError
ModuleNotFoundError
NotADirectoryError
PermissionError
ProcessLookupError
RecursionError
ResourceWarning
StandardError
StopAsyncIteration
TimeoutError
UnicodeDecodeError
UnicodeEncodeError
UnicodeTranslateError
WindowsError
exec() calls are restricted because it can be used to execute unrestricted code
The following built-in functions are restricted:
all()
any()
apply()
bin()
buffer()
classmethod()
cmp()
coerce()
enumerate()
filter()
intern()
iter()
map()
max()
memoryview()
min()
sorted()
staticmethod()
sum()
super()
type()
unichr()
Global built-ins access is restricted
All imports are restricted except the ones mentioned before
Namespace access is restricted:
globals()
locals()
vars()
In-place operators are restricted:
+=
-=
*=
/=
%=
//=
**=
&=
|=
^=
>>=
<<=
Prints are restricted
Strings that describe Python are restricted, there's no point to including these:
copyright()
credits()
exit()
help()
license()
quit()
Some data types alias are restricted:
bytearray
dict
file
list
long
unicode
xrange
basestring
object
property
Actions¶
An action is executed when an event matchs a user defined action rule.
The following actions are available on the EMI’s Edge AI Platform.
- Recording Action
- Upload to Amazon Kinesis Firehorse Action
- Send a LINE message/stamp Action
Recording Action¶
The EdgeStream application implements the video recording module which records videos for each incoming event, this module is configured according to established actions into the stream configuration file.
The actions determine the video duration for:

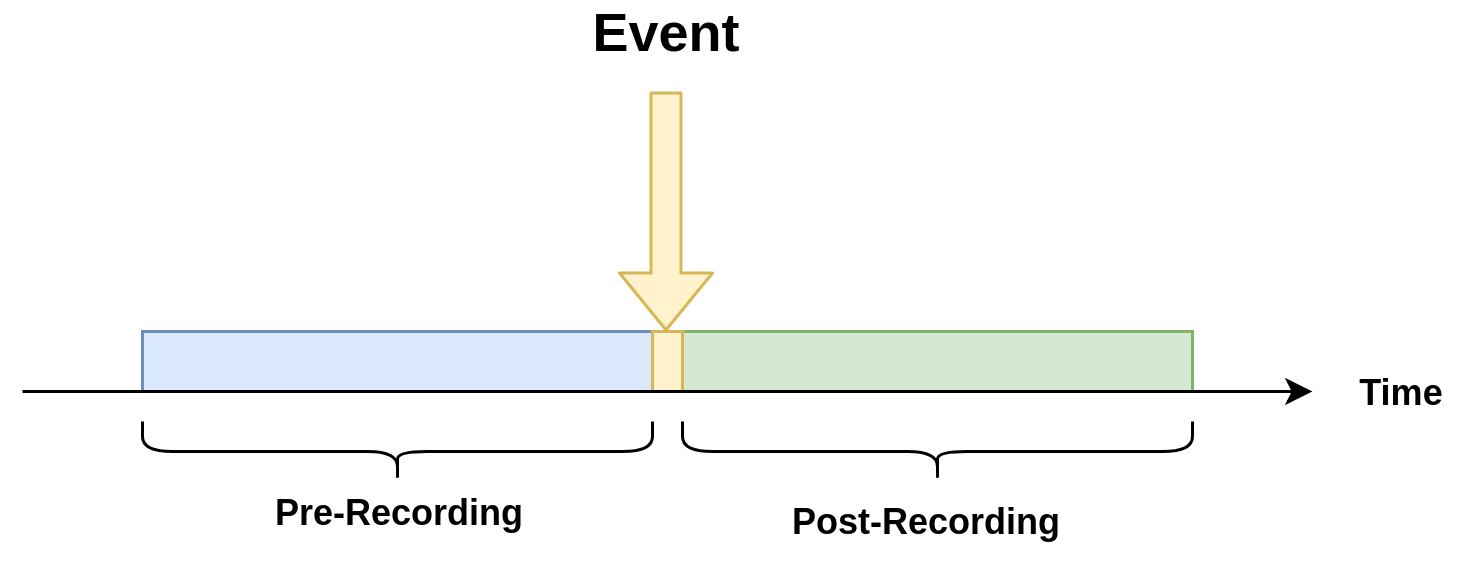

Pre-recording: recorded video before triggering an event. Post-recording: recorded video after triggering an event.
The videos for both recording processes will have the same duration.
Record action
This action establishes the duration of videos for pre-recording and post-recording equivalently. It must define as integer value.
"action":{
"action_name": "record", "duration_in_seconds": 15
}
Video prolongation for post-recording

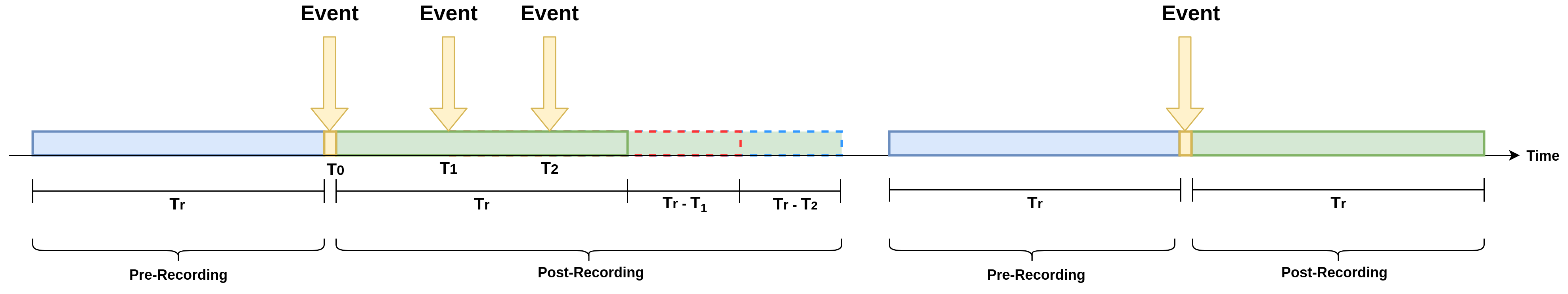

This recording module performs a video prolongation in post-recording for incoming events during the recording process. The video prolongation depends on the record time, defined in actions, and the time for each incoming event. The next figure shows how the video prolongation works.
- Tr = Record time
- T0 = Initial post-record by first event
- T1 = Arrival time for second event
- T2 = Arrival time for third event
- Tr - T1 = video prolongation by second event
- Tr - T2 = video prolongation by third event
Format name for recorded video:
stream_id_%ID_%Y-%m-%dT%H:%M:%S%z.mp4
- ID = Identifier
- Y = year
- m = month
- d = day
- H = hour
- M = minute
- S = seconds
- z = numeric time zone
Upload to Amazon Kinesis Firehorse Action¶
This is one of delegate actions executed by a Device Agent.
It will upload an event to a user defined location of the Amazon Kinesis Firehorse.
Here’s such a configuration.
"action": {
"action_name": "upload",
"deliveryStreamName": "pedestrianStream",
"accessKey": "",
"secretKey": "",
"region": ""
}
Send a LINE message/stamp Action¶
This is one of delegate actions executed by a Device Agent.
It will send a message and/or a stamp to a specified LINE talk room.
Here’s such a configuration.
"action": {
"action_name": "line",
"token_id": "",
"message": "",
"stickerId": 0,
"stickerPackageId": 0
}
Please check the Notification section of the LINE Notify API Document .
